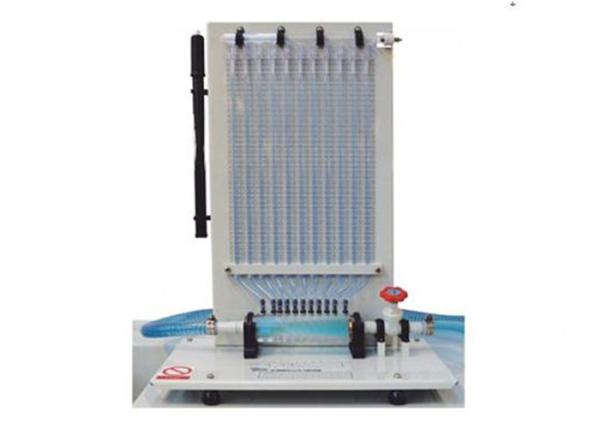

H5 Educational Equipment Technical Teaching Equipment Didactic device for studying a venturi
-
Description
Didactic device for studying a venturi allowing students to study the operation of a Venturi apparatus, to apply Bernoulli's theorem and to make direct comparisons between the experimental results obtained with the aid of apparatus and theoretical predictions.
Supplied with a complete instructional manual with practical work (TP).
Educational holdings
This teaching equipment makes it possible to carry out the following practical exercises:
- Measurement of the static pressure profile
- Comparison of the results with the calculation
- Measurement of the flow coefficient
- Application of Bernoulli's theorem
Supplied with a complete instructional manual with practical work (TP).
Specifications for tender
APPARATUS FOR STUDYING A VENTURI
- The device must allow the observation and the measurement of the variation of the static pressure through a horizontal Venturi. The value of the flow coefficient can be determined for different flow values. Air pressures will be measured using a multimanometer.
The bench must allow the following pedagogical operations:
- Measurement of the static pressure profile
- Comparison of the results with the calculation
- Measurement of the flow coefficient
- Application of Bernoulli's theorem
Technical specifications required:
- 1 Venturi tube with dimensions: Convergent inlet: 26 mm in diameter, neck: 16 mm diameter, Convergent outlet: 26 mm diameter
- Manometer tubes made of transparent plastic
- 1 pipe for the repression
- 1 hand pump
- 1 air pressure regulating valve (up to 250 mm of water)
- 1 water flow control valve (maximum flow: 27 l / min)
- Adjustable feet for leveling.
- Dimensions: approx 720 x 650 x 300 mm
- User and Practical Manual in French
Product Details and Warranty
We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.
We supply 3 years warranty time.
Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.
Arrange delivery within 45 days upon receipt of payment.
Please see below photo for detailed package.
Training Room Photo
Company Information
We supply professional educational training equipment and technical teaching equipment, which has been widely applied in Engineering Universities, Polytechnics, Technical Institute, Vocational Schools as well as Industry workforce Development Programs and Training Center. Our products allow students to learn and experiment through valuable hands-on experience, and the technology covered by our training equipment provides knowledge, experiments and didactic skills development that are of critical importance to today´s and tomorrow´s careers.
Photo for Clients Visiting Factory
Service
We supply supply7*24 hours service, customer design service, OEM service, buyer label service. With professional engineers team and sales team, we assure you good product quality.
Certificate
Our products takes ISO9001 product management system.
| No. | Feature Name | Details |
| 1 | Customer design | Yes |
| 2 | Warranty | 1 year, 2 years, 3 years or 5 years according to client requirements |
| 3 | Package | Plastic film+ carton+ Fine plywood |
| 4 | Products standard | International didactic equipment standard |
| 5 | Application range | Educational equipment for university, college, vocational training centers |
| 6 | Company philosophy | Supply best quality Chinese products to the worldwide schools. |
| 7 | Self owned brand | Shouldshine, SSEDU, JSS. |
| 8 | Production time | From 10 days to 60 days according to different items |
|
|
