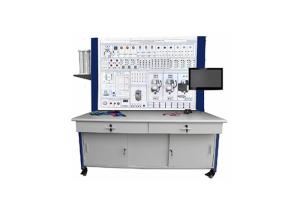

Automation Vocational Education Equipment acrylic Electrical Installation Trainer 356kgs

ZE5107 Educational Unit for Training on Advanced Electric Industrial Installations

1. FEATURES :

Power and Control circuits of single motor
Overload Connections in circuits with more than one motor Power and Control circuits for three motors
Power and Control circuits for reversing the motion direction of a three phase motor
Power and control circuits for operation of single phase motor
End of stroke switches Photocell and proximity sensors Timer Control circuits
Pressure control switches and liquid level indicator
Power and Control circuits for a star delta motor
Series resistance starting motors, power and control circuits Soft starters
Tachometers for measurements of motor speed Digital meters

The stand is supplied with a transparent acrylic tank which is fitted on and connected to a water pump and equipped with pressure sensors and liquid level indicator to train the students on the industrial processes related to tanks.

The unit is supplied with 3 motors equipped with different sensors to conduct the experiments of end of stroke, speed measurements and photocell and to conduct also experiments related to motors,

The inputs and outputs of the different sensors are available for use by students
separately from the motors for any other purpose
